A real world comparison between Mono, Poly, PERC and Dual PV Modules.
* This is a field test and the results are specific for this installation on this location please research which is the best solution for your own situation as the results can be different based on environmental influences.
Total solar yield as of 27/03/2023 when the results were reset:
Mono: 9158 kWh
Split-cell: 9511 kWh
Poly: 9113 kWh
Perc: 9471 kWh
Perc-east: 1970 kWh
Perc-west: 1730 kWh
.png)
.png)

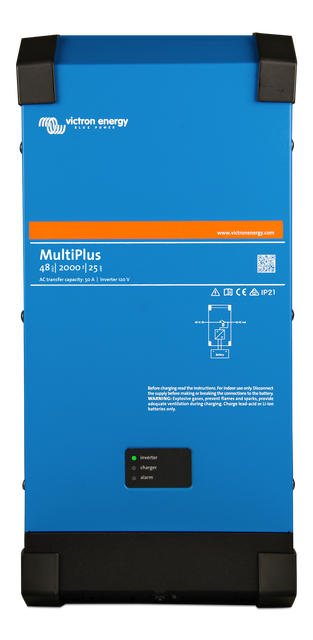

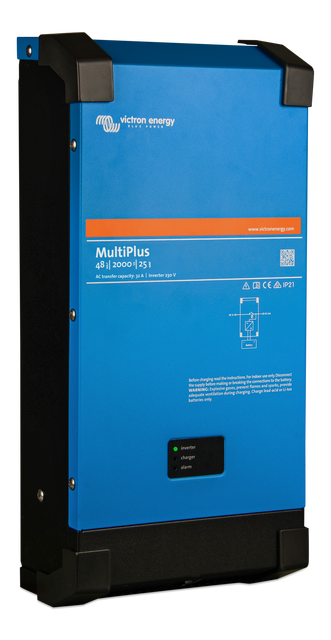

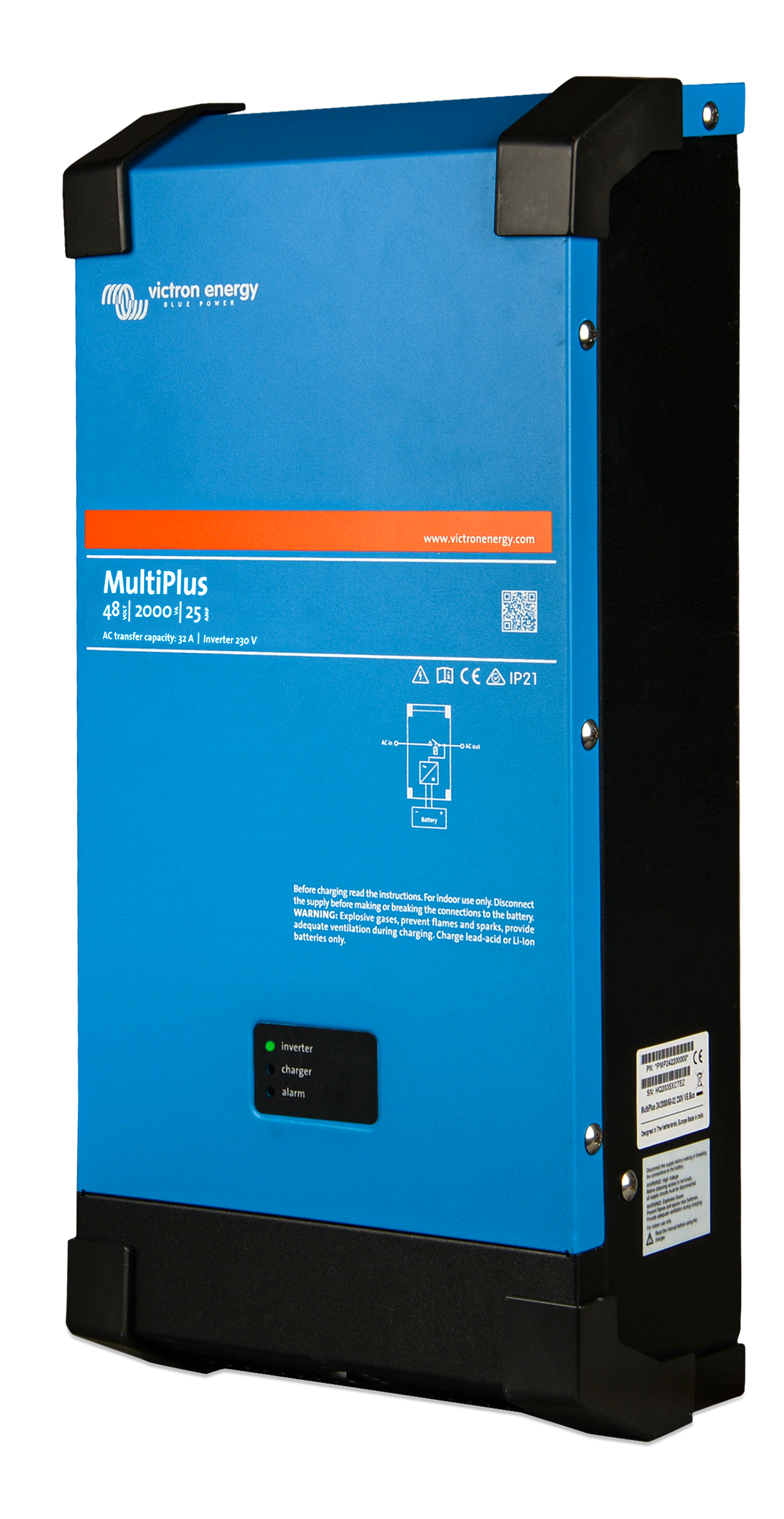

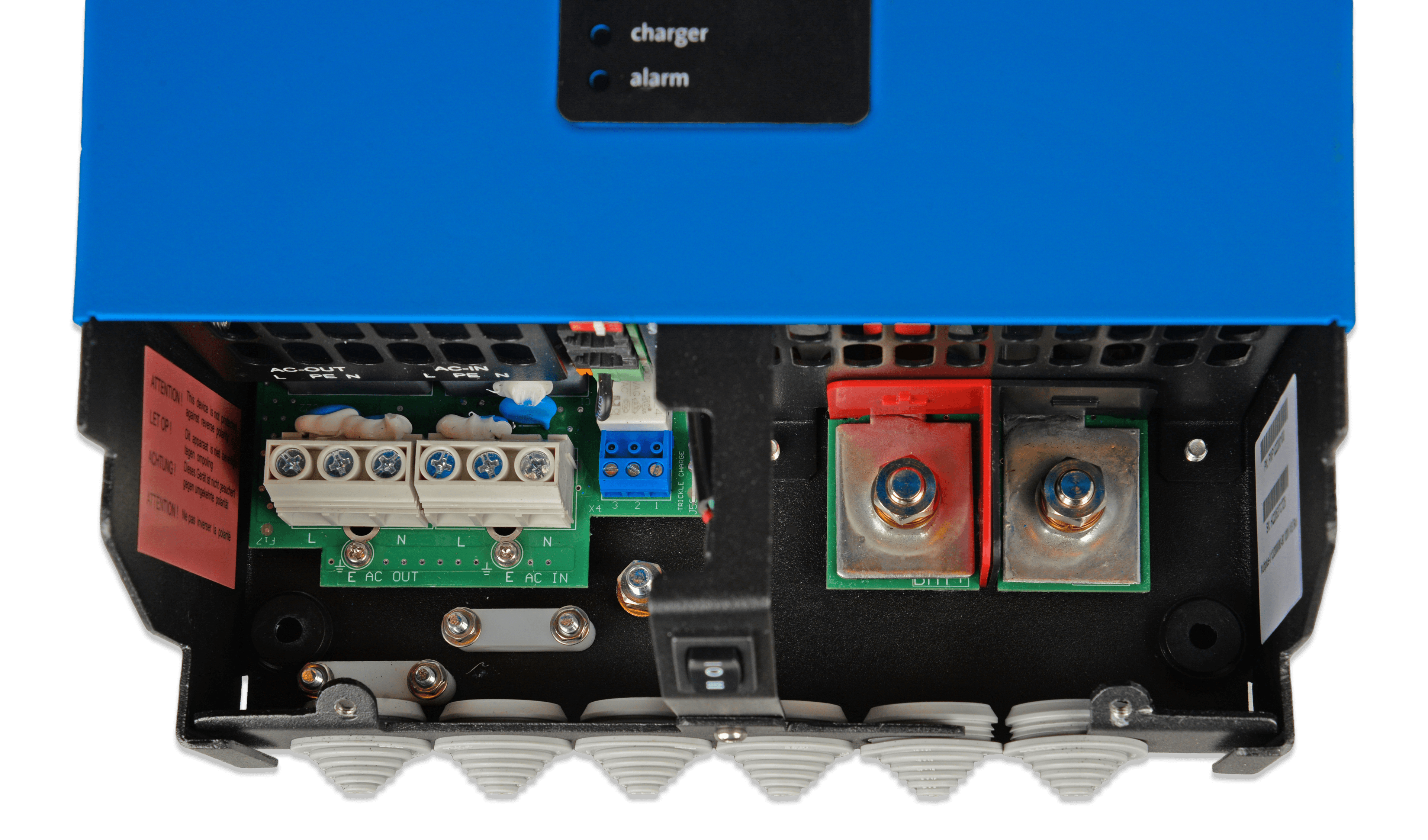

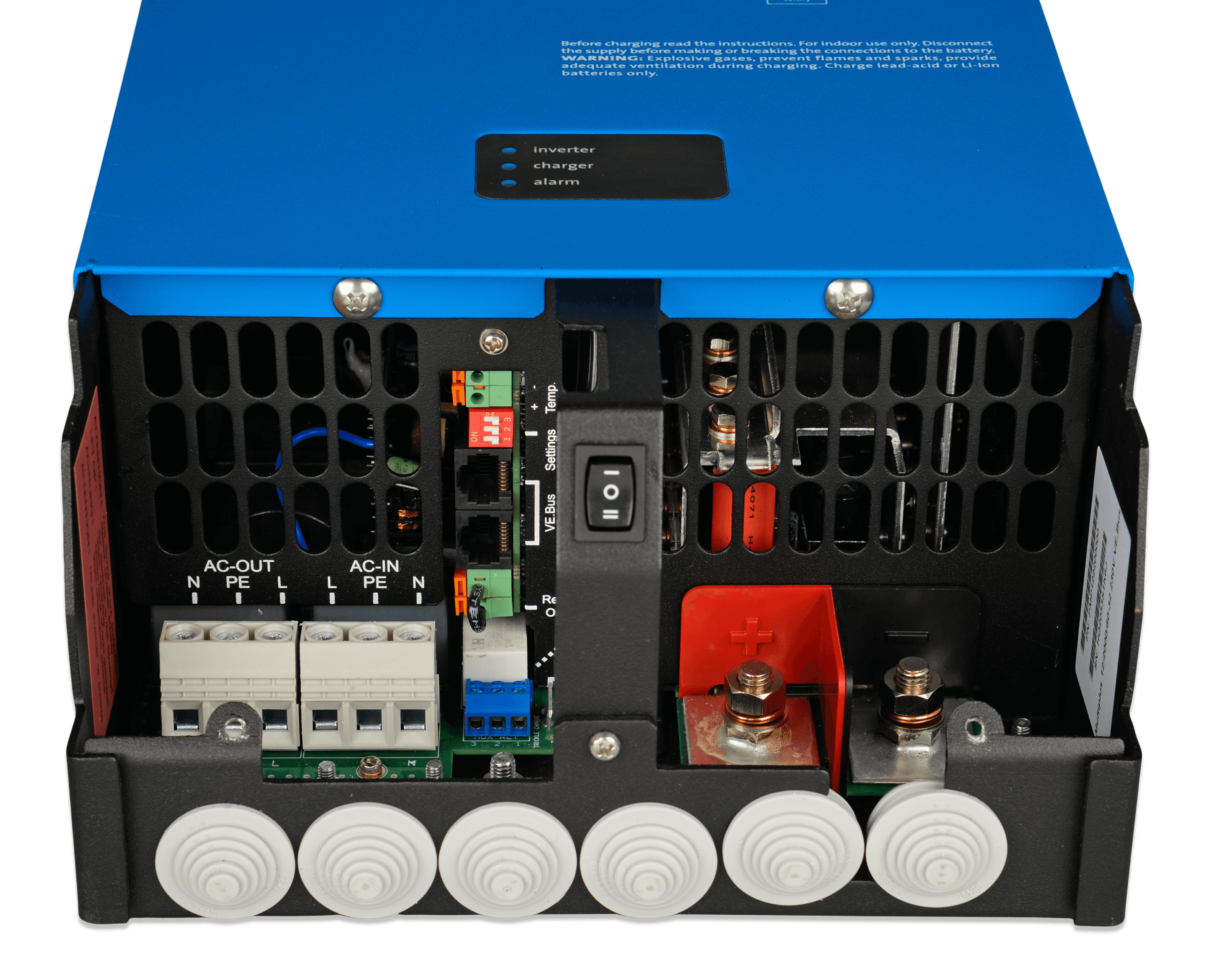

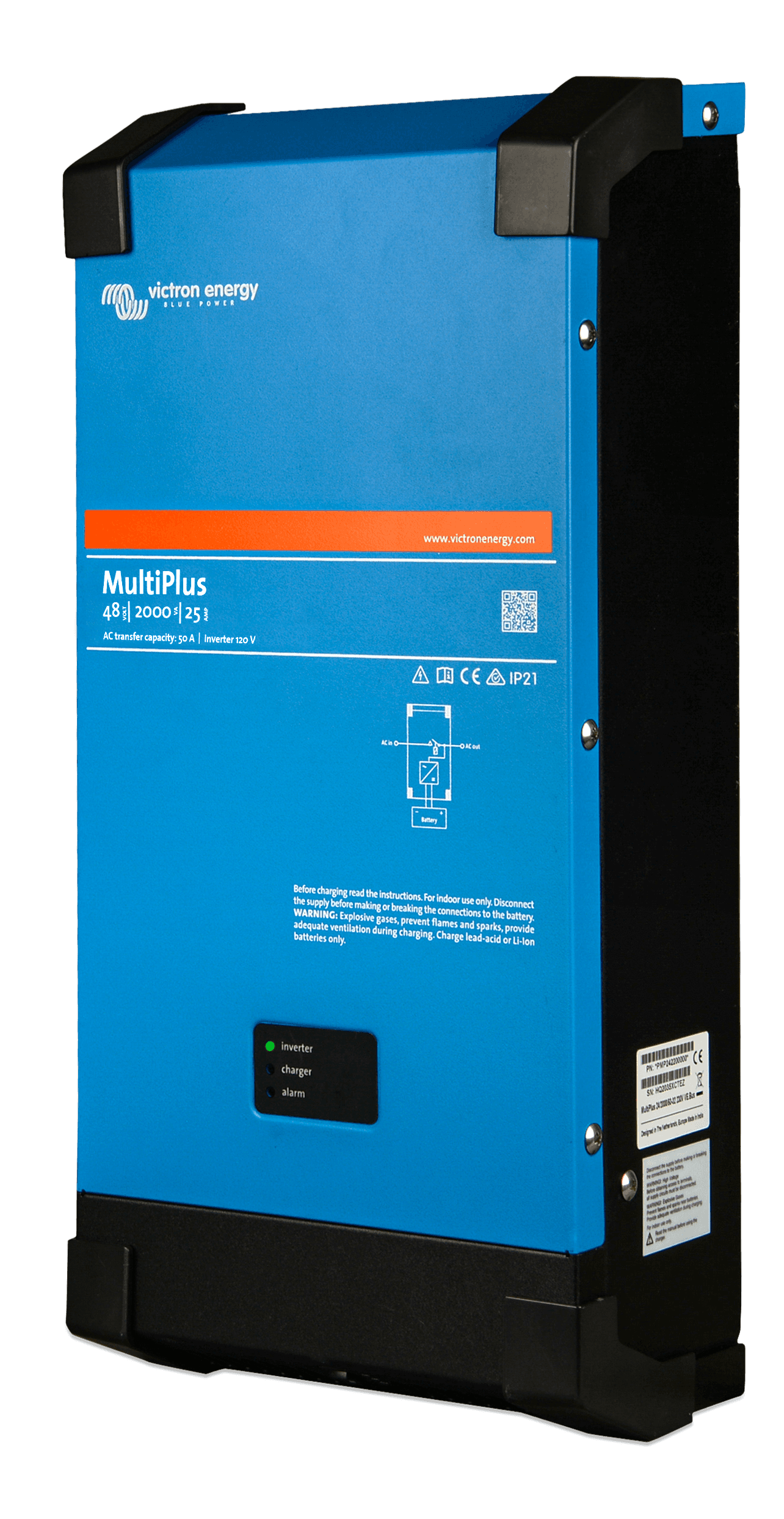

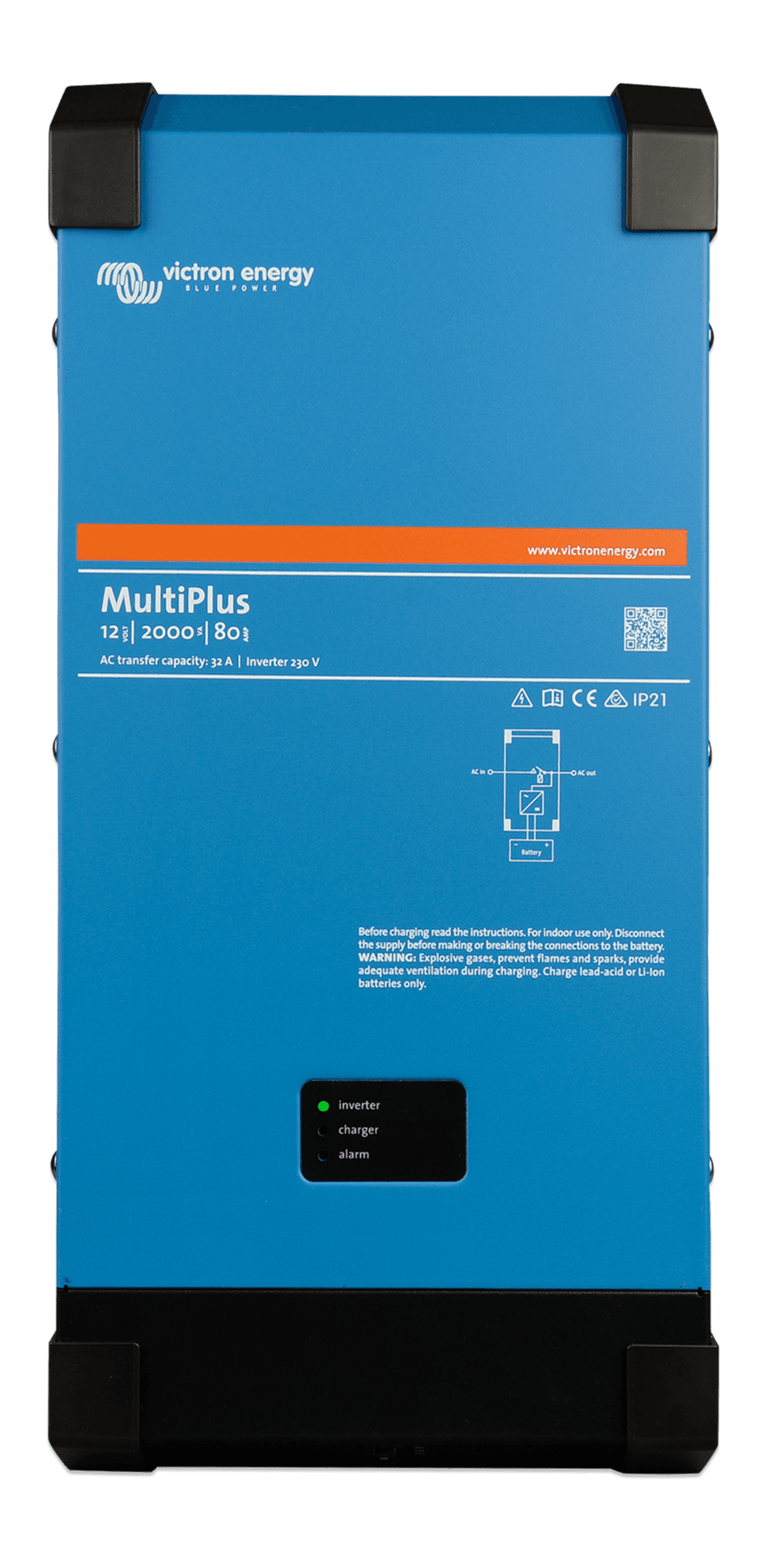

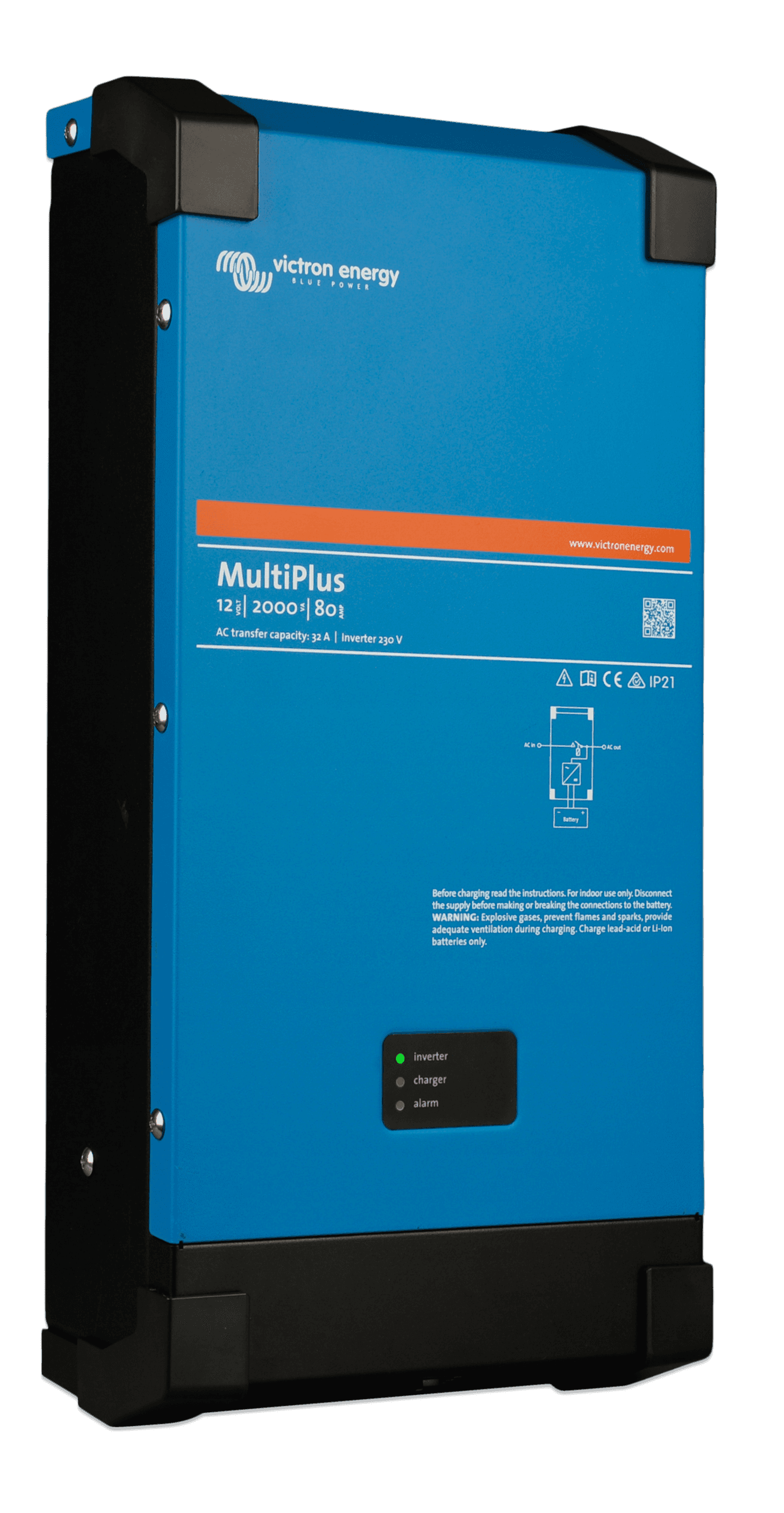

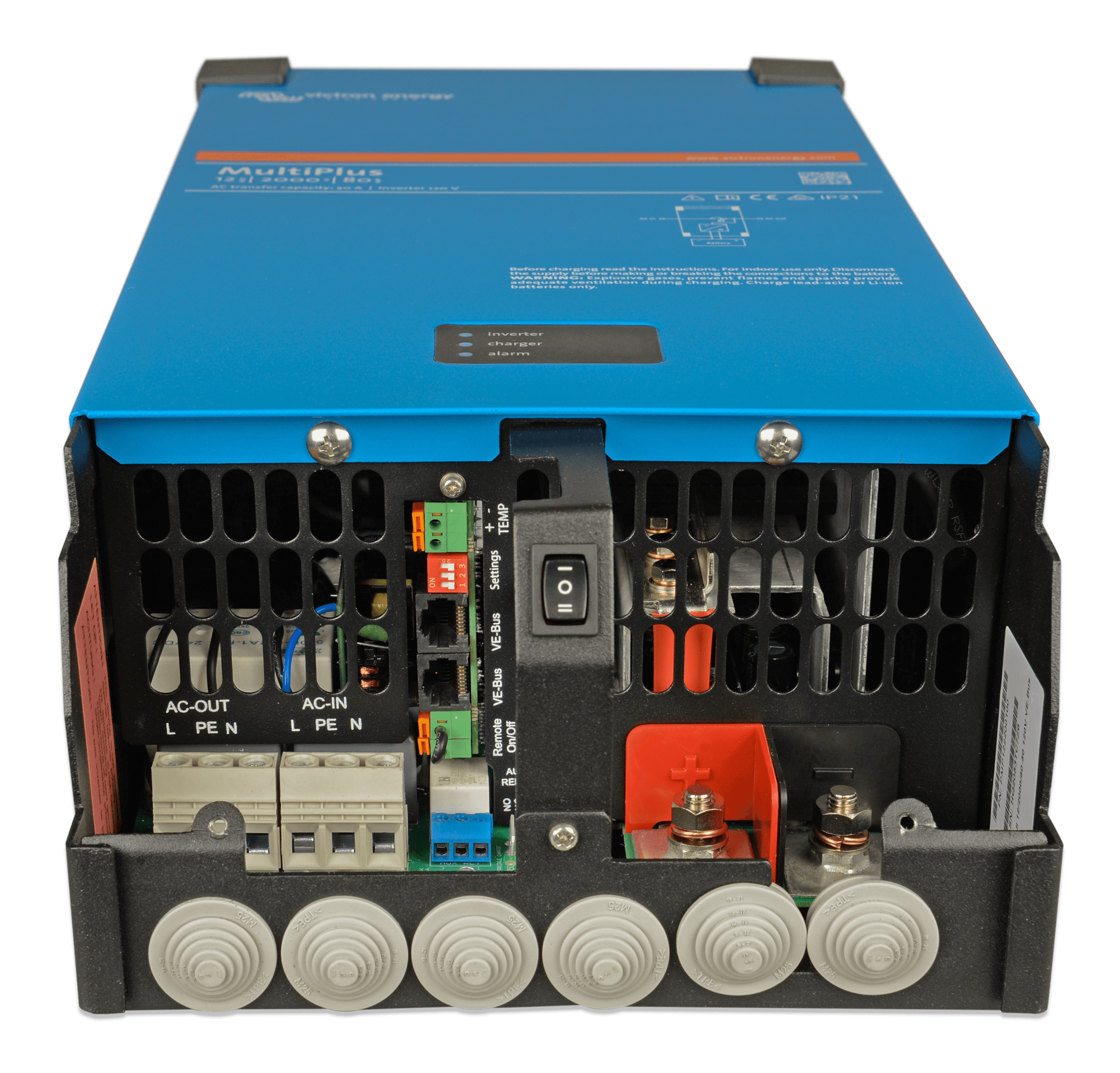

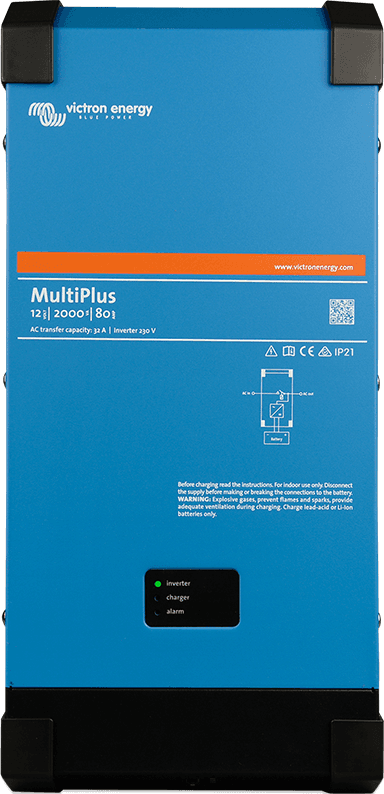

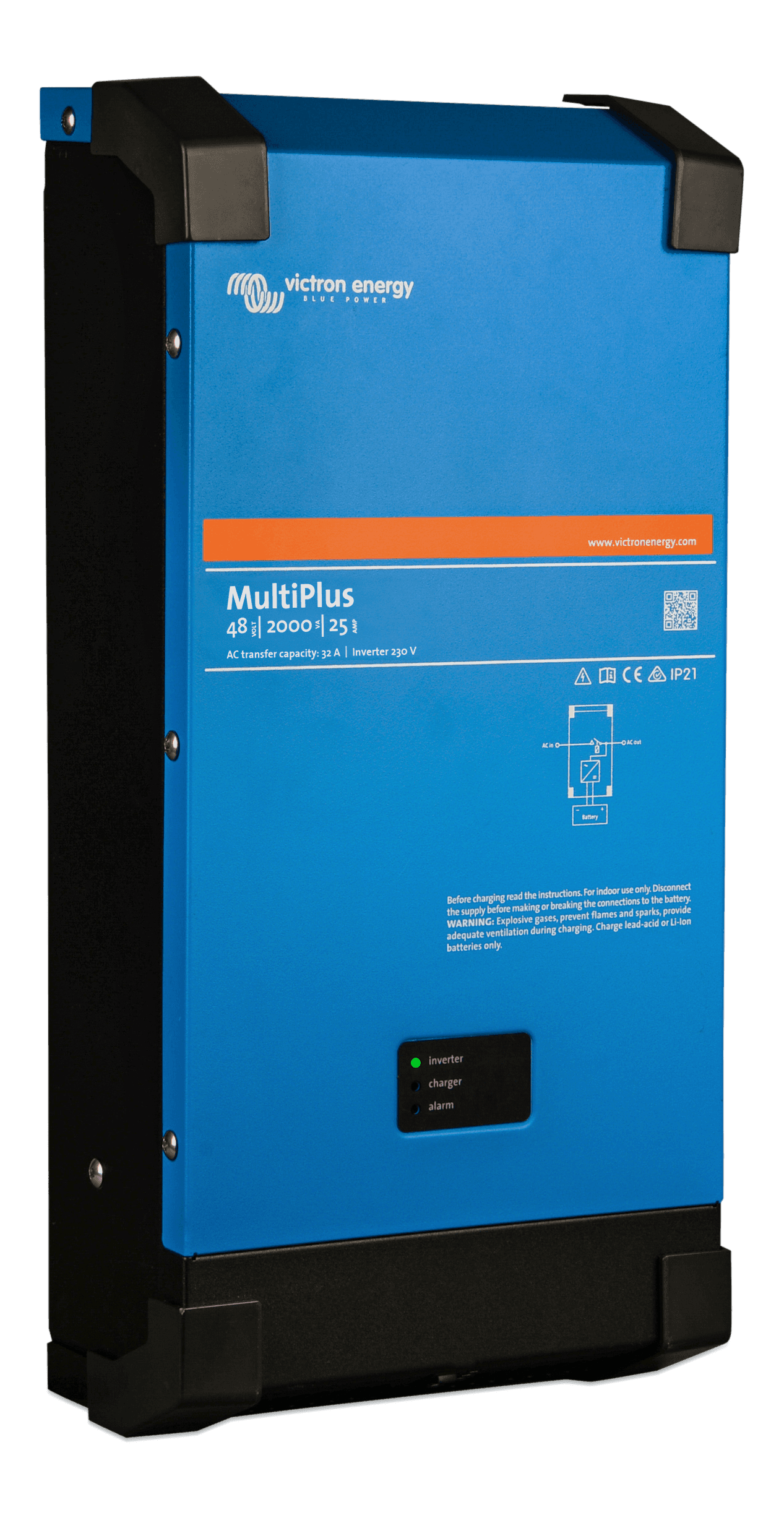

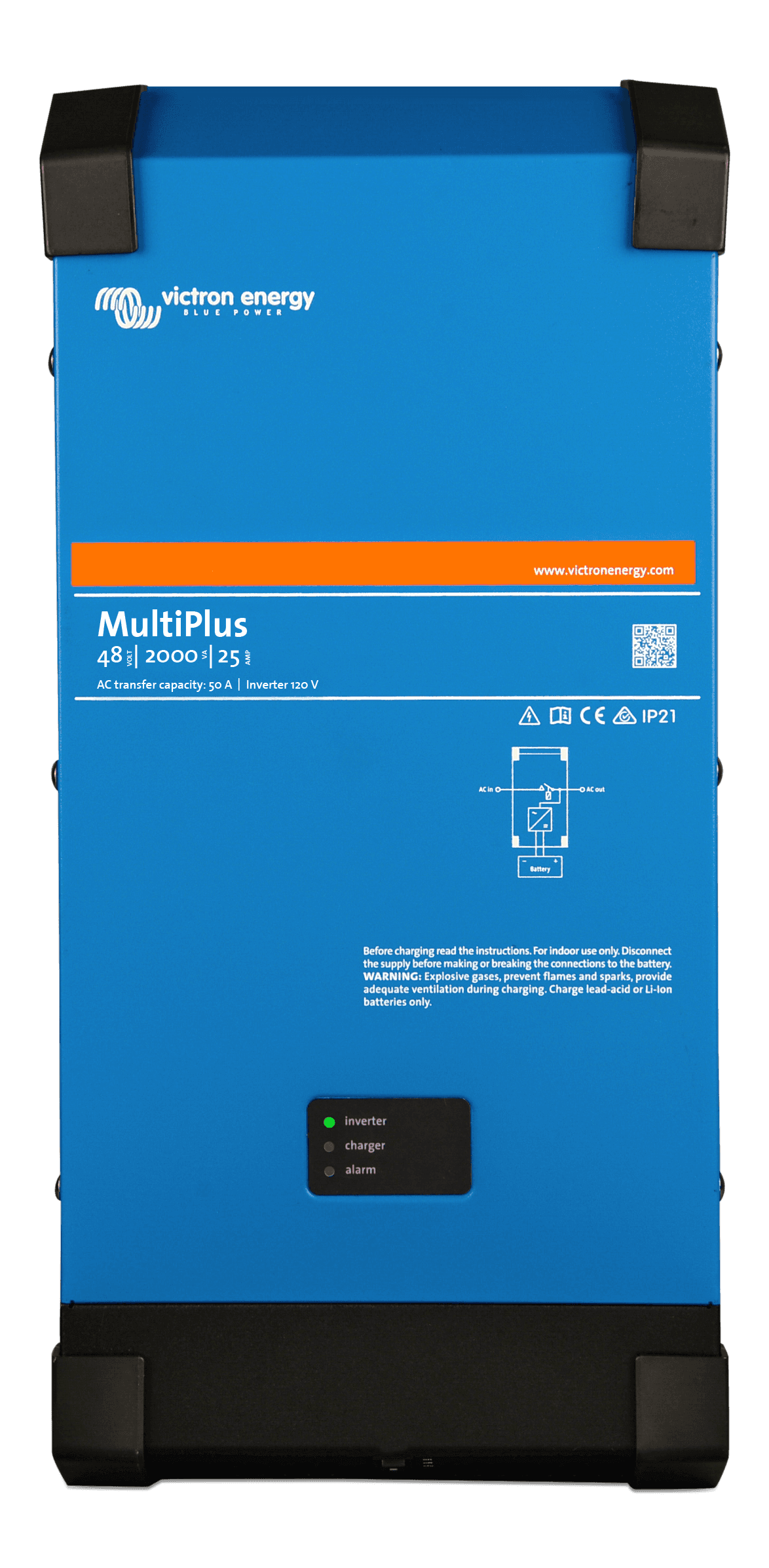

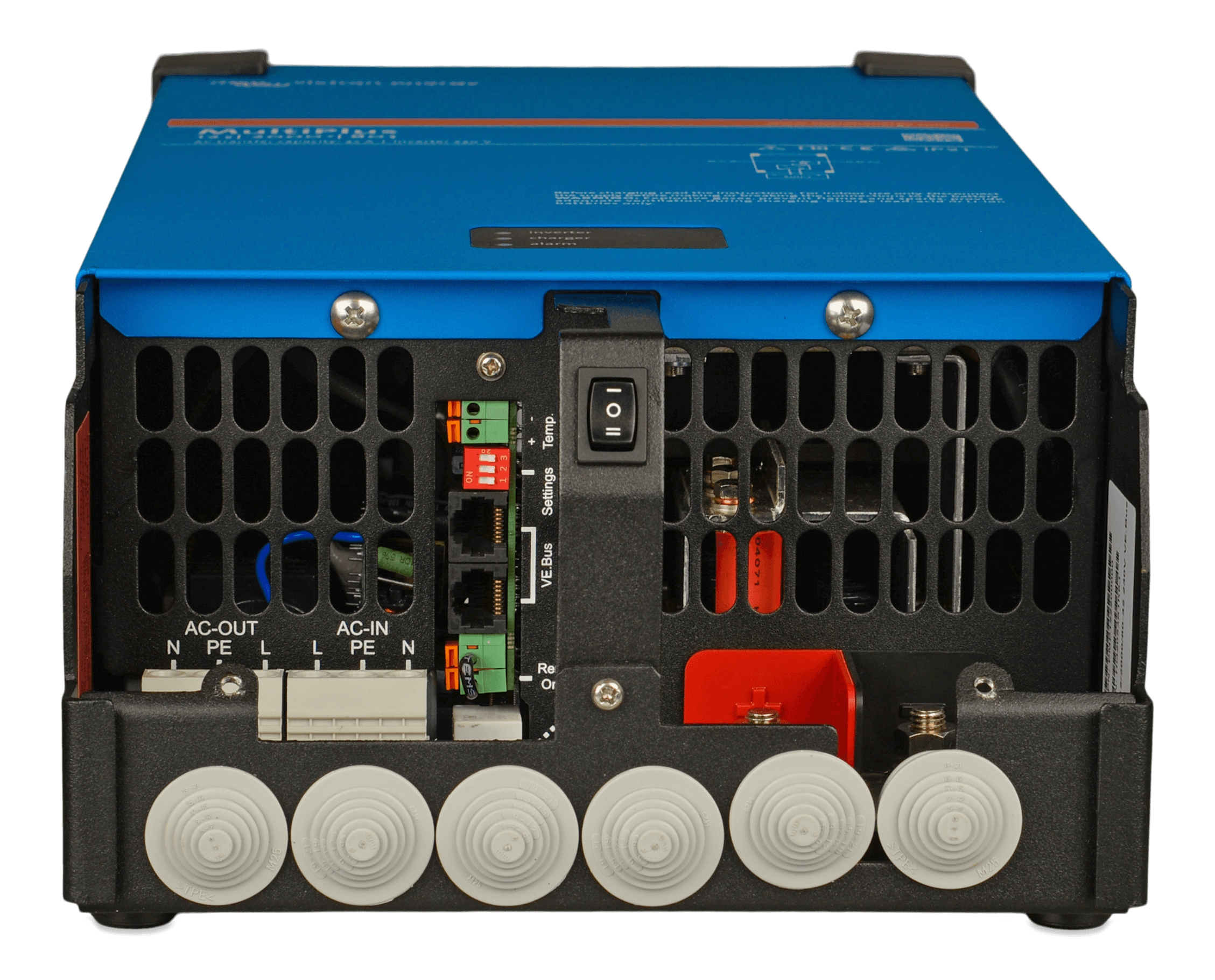

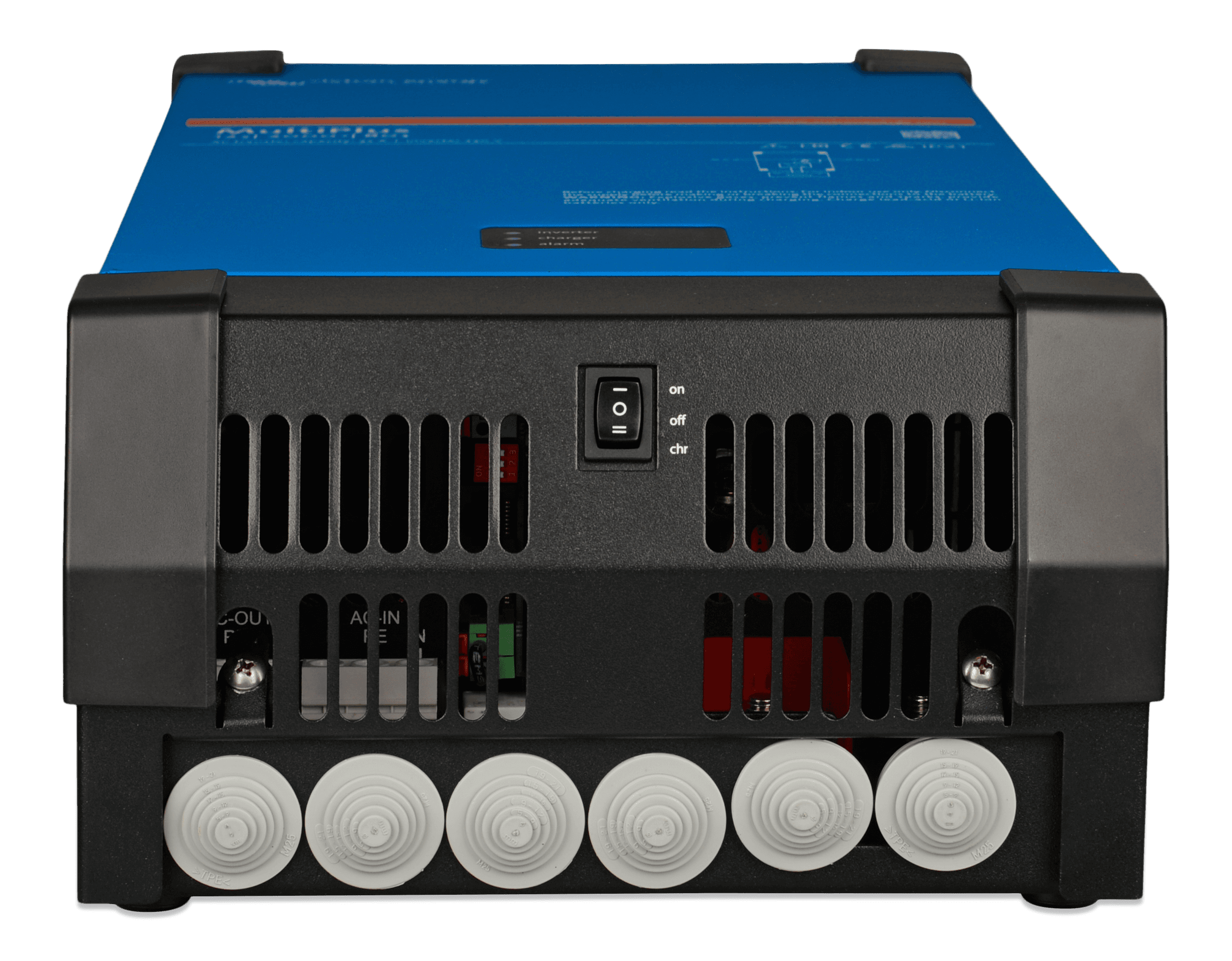

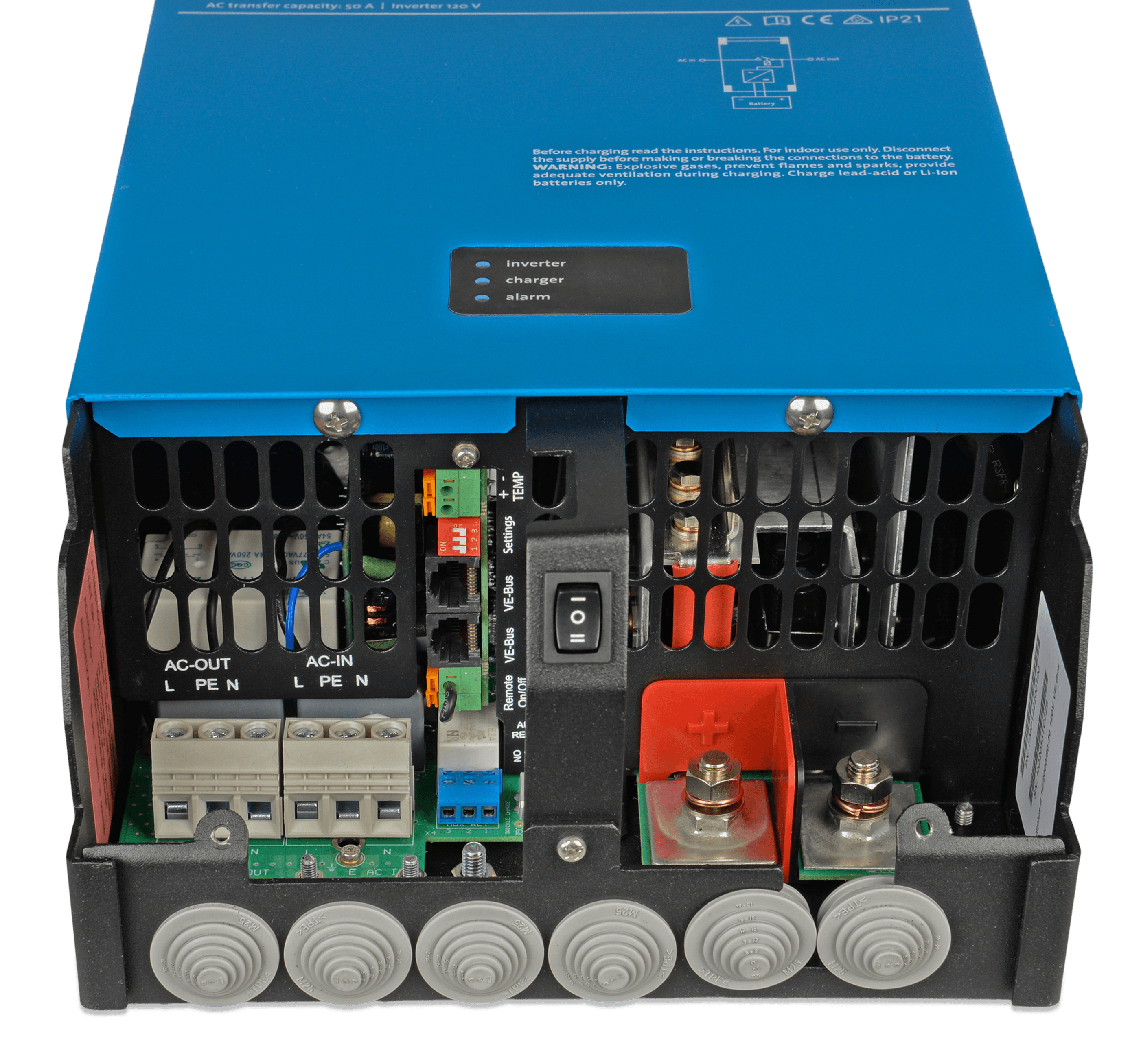

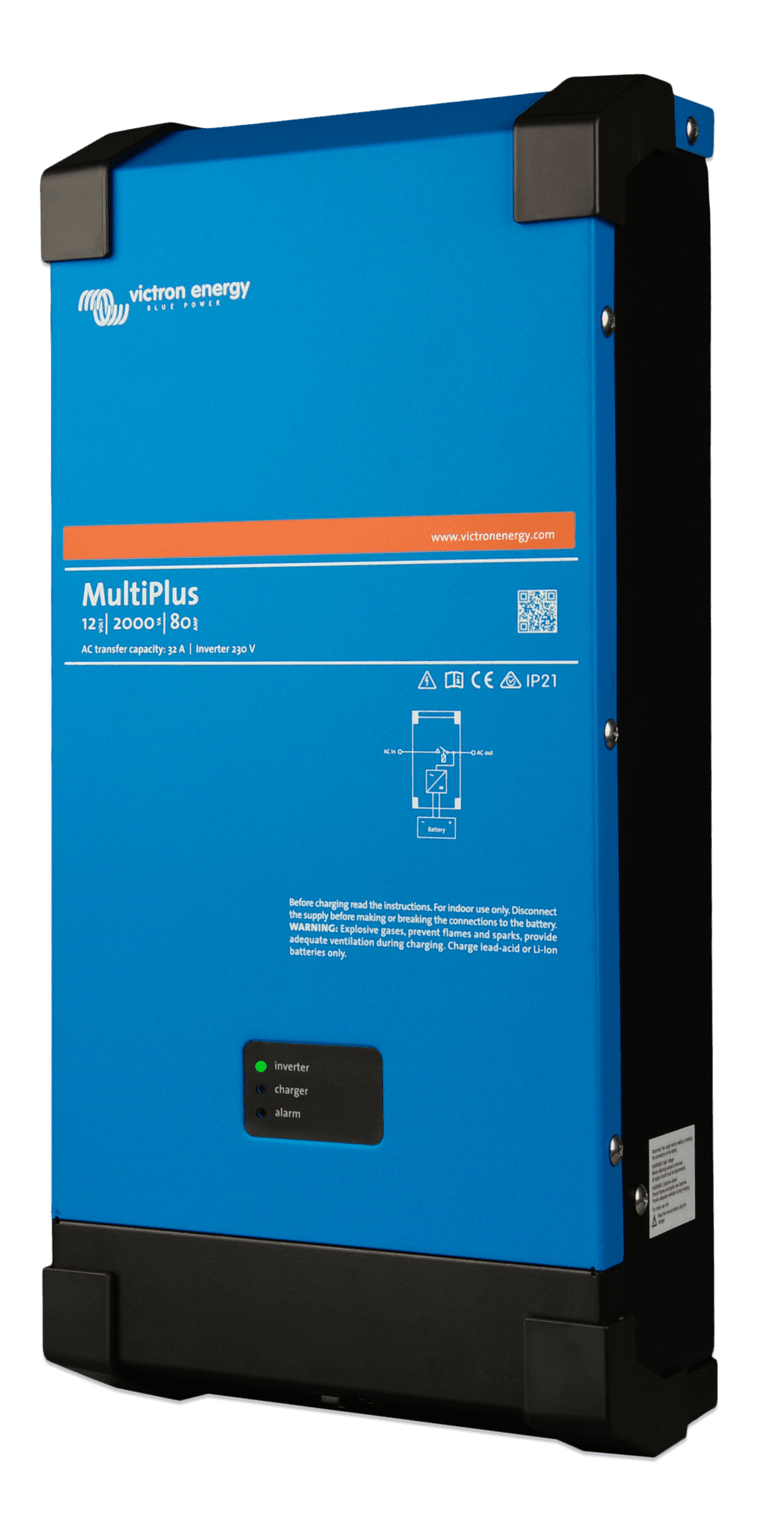

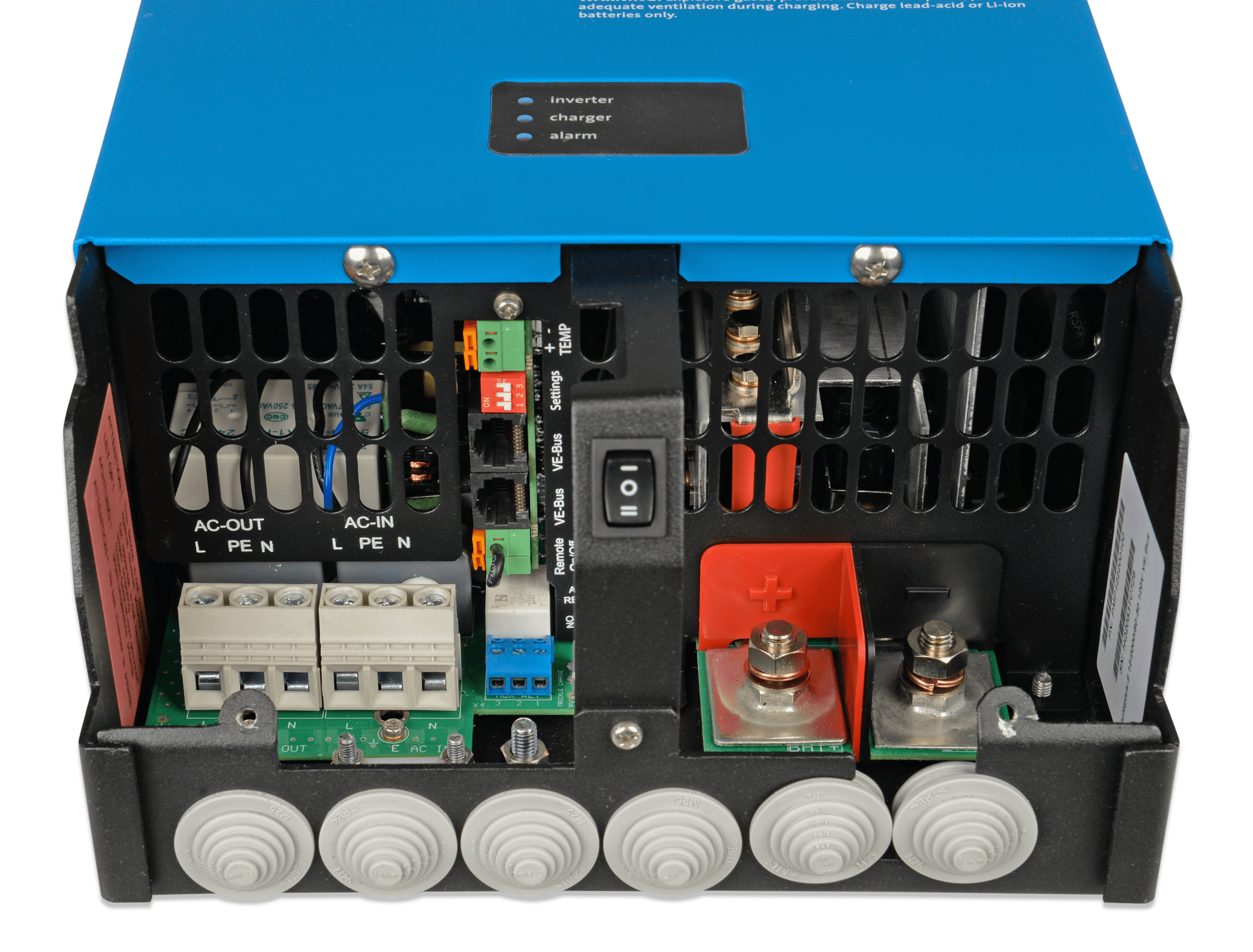

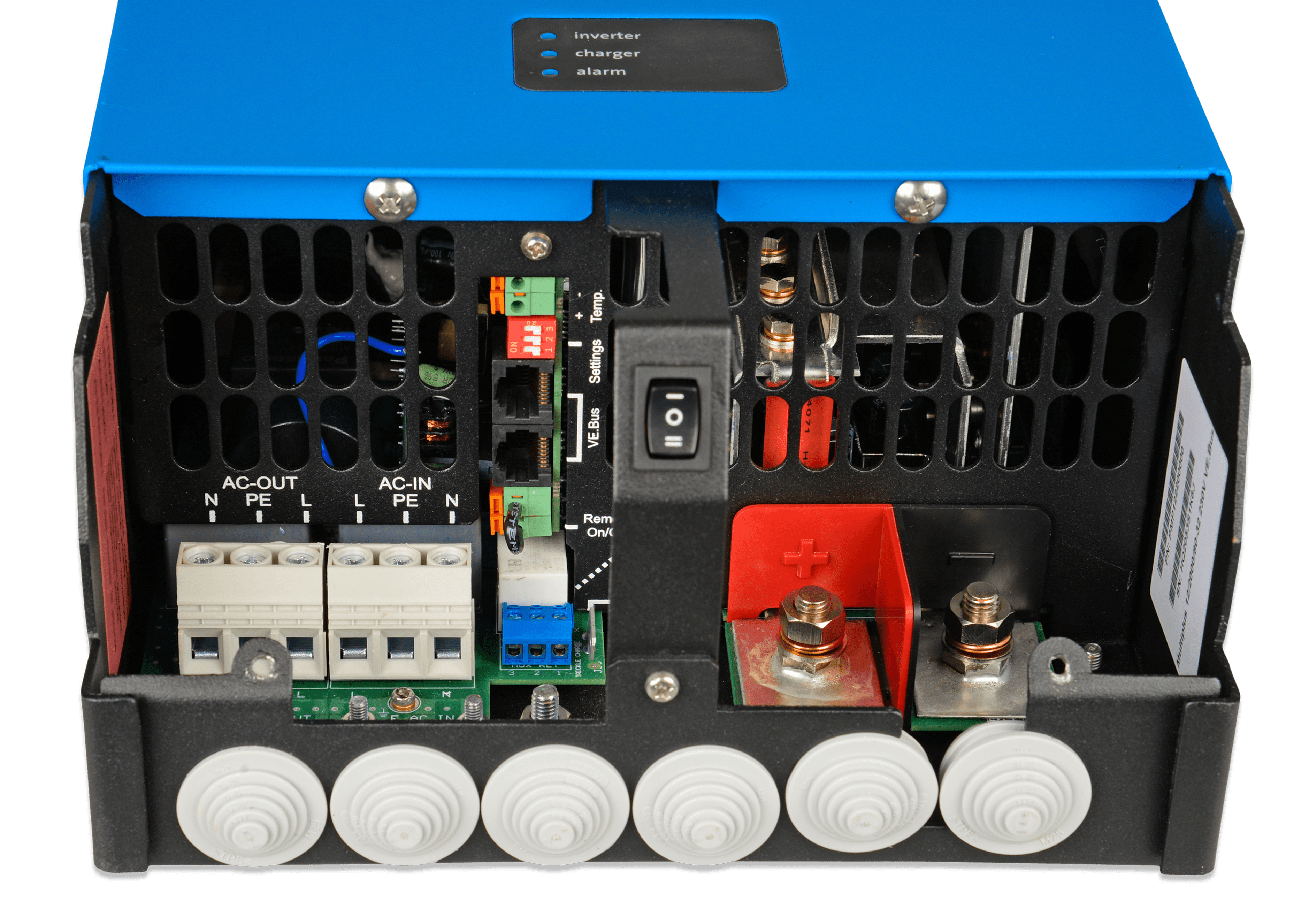

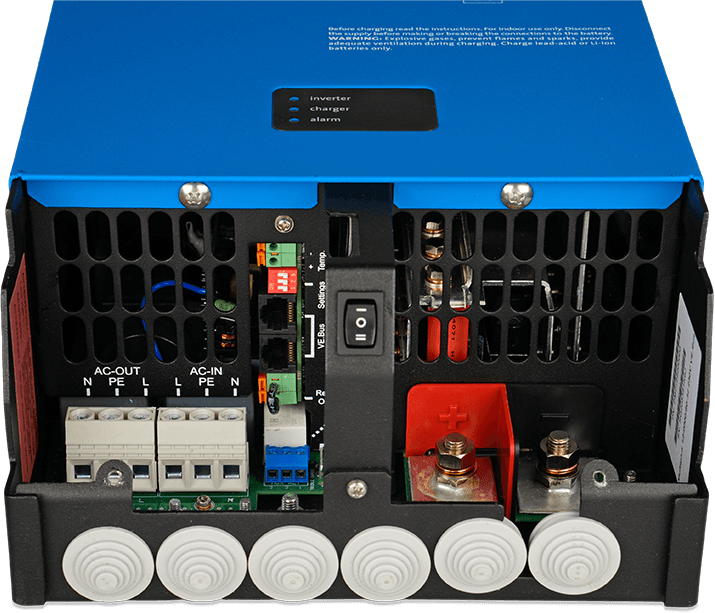

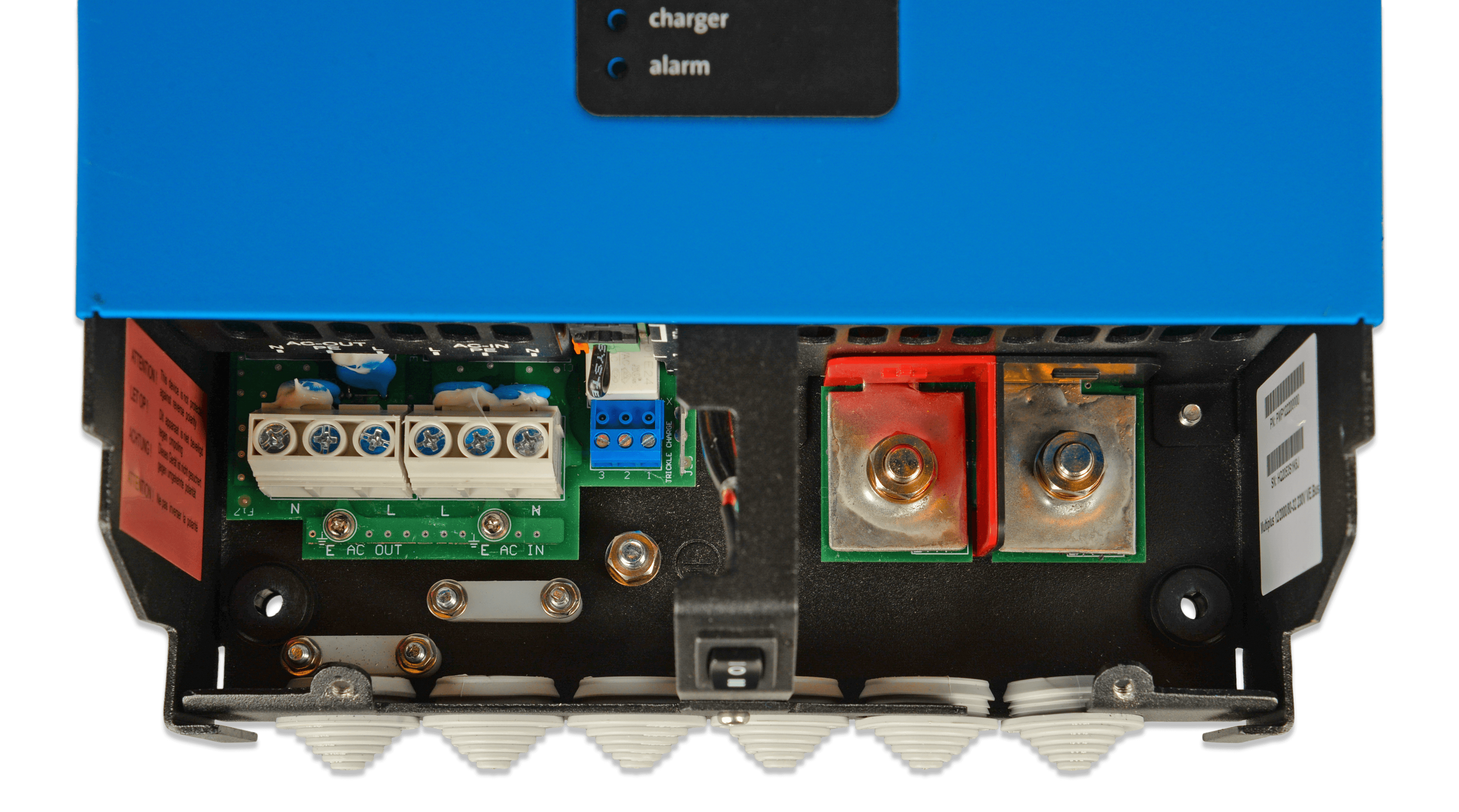

The MultiPlus, as the name suggests, is a combined
inverter and charger in one elegant package. Its many features include a true
sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus
multiple system integration features.
The MultiPlus will prevent overload of a limited AC
source, such as a generator or shore power connection. First, battery charging
will automatically be reduced when otherwise an overload would occur. The second
level will boost the output of a generator or shore side supply with power
taken from the battery.
In the event of a grid failure, or when shore or
generator power is disconnected, the inverter within the Multi is automatically
activated and takes over the supply to the connected loads. This happens so
fast (less than 20 milliseconds) that computers and other electronic equipment
will continue to operate without disruption.
Up to 6 units can operate in parallel to achieve
higher power output. Three phase or split phase operation is also possible.
When coupled with a GX device (e.g. Cerbo GX) you can
monitor and control your MultiPlus and system or systems locally (via LAN) or
remotely (via the internet) from anywhere in the world, using the free VRM app
and the free VRM portal website. Access can be from a phone, tablet, laptop or
PC for multiple operating systems. There is no end to the level of control,
from adjusting your MultiPlus to auto starting a backup generator and
more…"
If you would like to know more about this product, we have an Online Training course available. Training includes a video, links to important reference resources, and an exam to test your knowledge. Successful completion is rewarded with a certificate. Online Training requires a free Victron Professional account.
